Acoustic Zooplankton Fish Profiler


Acoustic Zooplankton Fish Profiler (AZFP)

An autonomous calibrated scientific echosounder with unmatched combination of multiple frequency operation, low power and long endurance that fits your budget.

When you need to study the water column

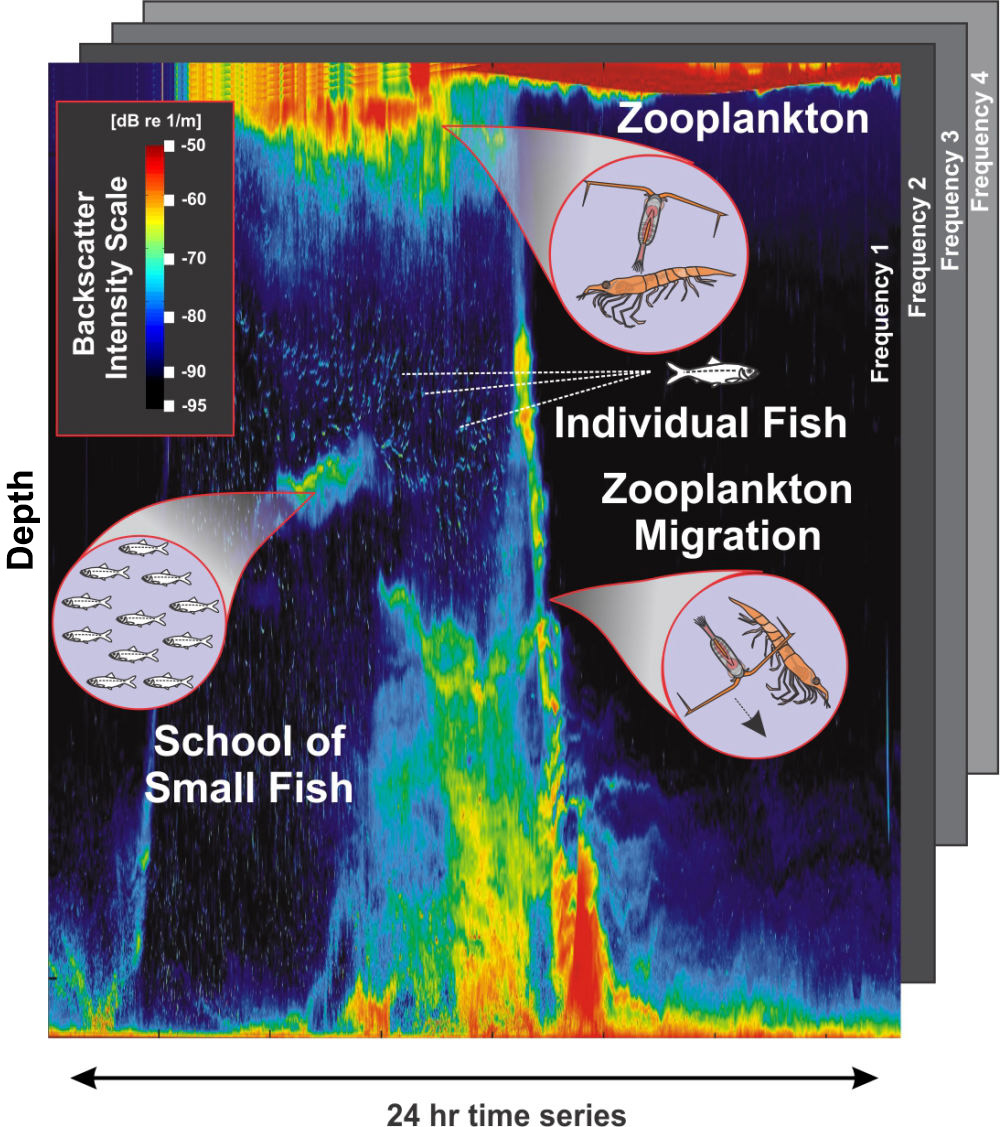

The ASL Acoustic Zooplankton Fish Profiler™ (AZFP), offers a new, economical way of obtaining reliable measures of marine environmental conditions in the water column. The AZFP™ can monitor the presence and abundance of zooplankton and fish within the water column by measuring acoustic backscatter returns at multiple ultrasonic frequencies. Other sonar targets realized from the sonar backscatter data include bubbles and suspended sediments.

Acoustic Zooplankton Fish Profiler (AZFP) Specifications

Up to four frequencies
Upward or downward looking modes
Configurable Ping Rate up to 1 Hz
16 GB Compact Flash, 32 GB Compact Flash optional
0.17m diameter x 1.0m length
50kg (in ruggedized shipping/storage case)

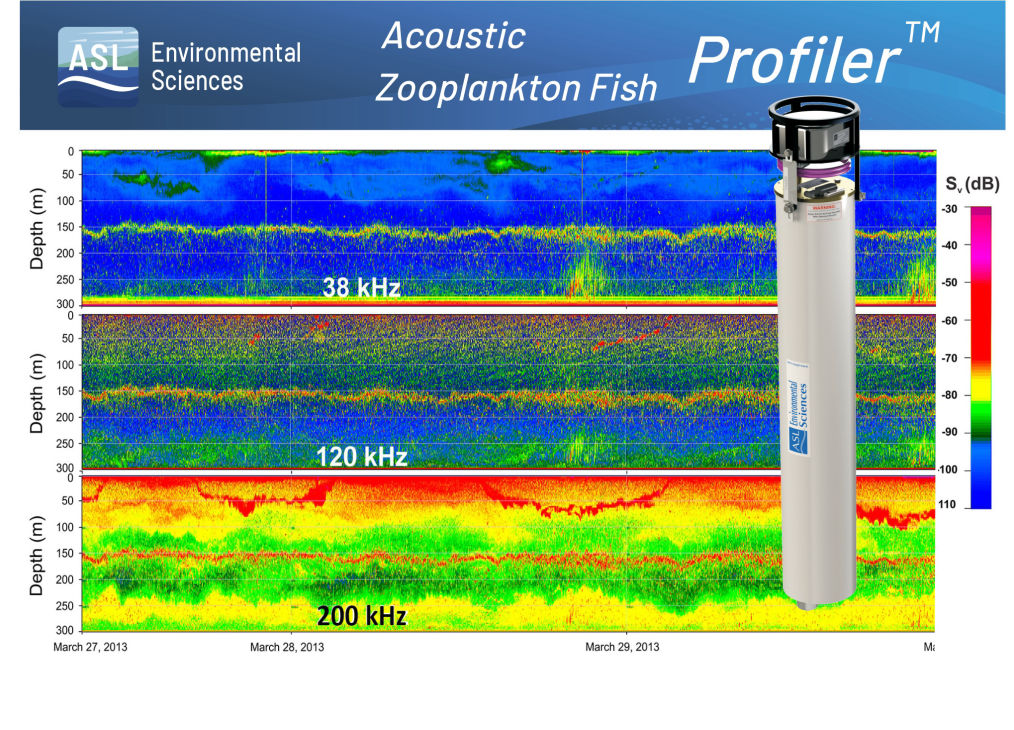

Data Examples (click here)
